Installation instructions

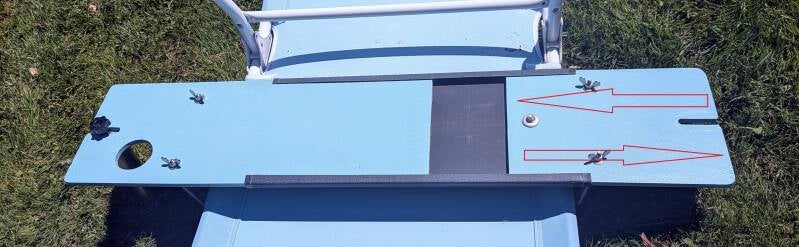

Adjust the Shadow Catcher System (SCS) to the width of your lounger, approximately 10 cm wider.

Loosen the knurled screws. Clip the suspension brackets onto the lounger frame and tighten the knurled screws again.

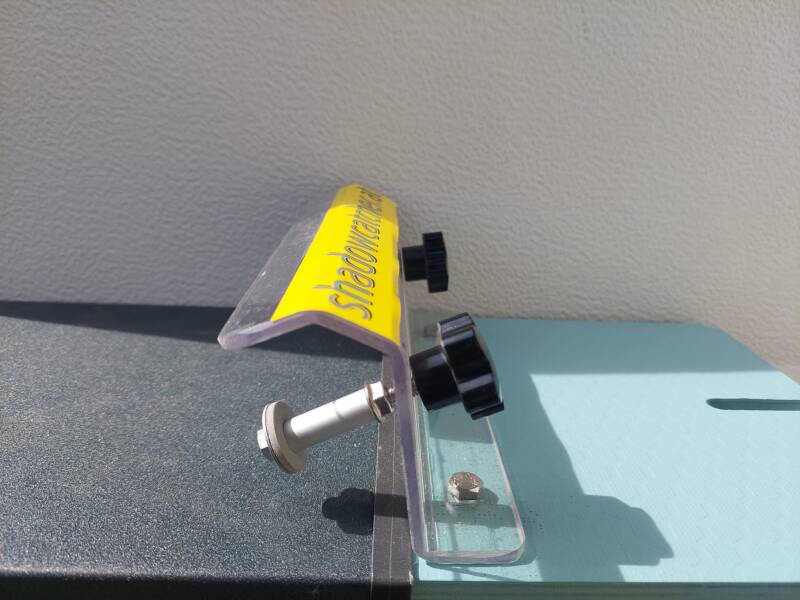

Insert the parasol adapter into the slot on the parasol mounting plate and screw it in place.

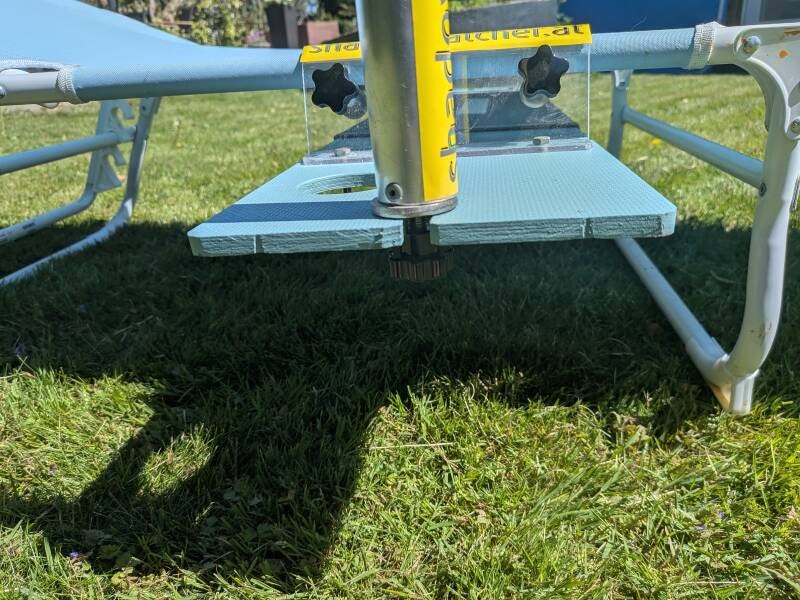

This can now be done on the left and right sides to provide optimal protection from both the morning and afternoon sun.

Fits loungers from 52 to 70 cm wide with a 3 cm frame diameter. Usable on any surface.

Weight: 2.1 kg, Length: 90 cm

Compatible with most balcony parasols, ideally with a 22 mm pole diameter.

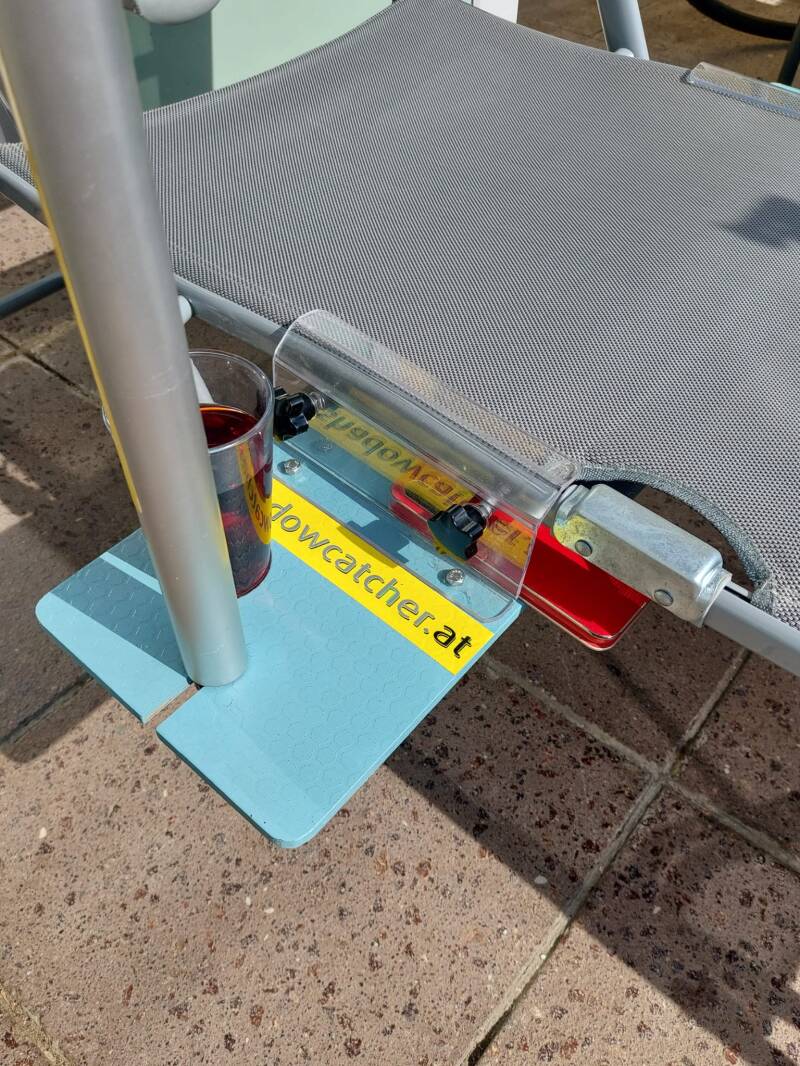

The parasol mounting plate extends 18 cm beyond the lounger on both sides, serving as a shelf. A drinking cup can even be placed in the large opening.
